Assignment 10

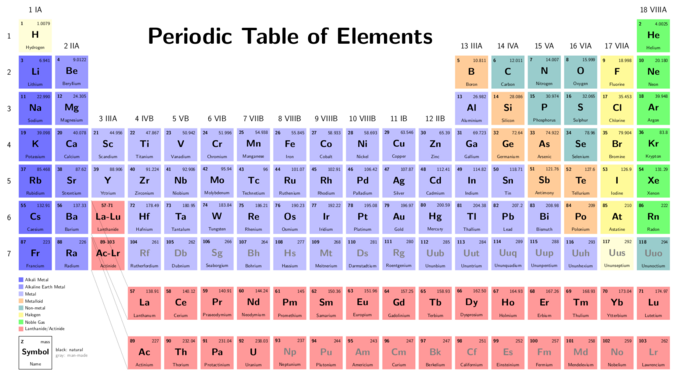

Creating a Periodic Table with TikZ

Objective

In this assignment, you will create a professional and visually appealing periodic table of elements using the TikZ package in LaTeX. By following the steps outlined below, you will practice creating structured diagrams using TikZ and gain experience with LaTeX document creation and compilation.

Instructions

Folder Structure

Create a main folder named Assignment10.

Steps

Create the LaTeX File:
- Inside the Assignment10 folder, create a file named periodicTable.tex.
- Copy and paste the following TikZ code into the file:

% Adapted from https://texample.net/tikz/examples/periodic-table-of-chemical-elements.
% All Credit to Ivan Griffin.

\documentclass[tikz,border=5mm]{standalone}
\usetikzlibrary{shapes,calc}

\begin{document}

\newcommand{\ElemLabel}[4]{
  \begin{minipage}{2.2cm}
    \centering
      {\textbf{#1} \hfill #2}%
      \linebreak \linebreak
      {\textbf{#3}}%
      \linebreak \linebreak
      {{#4}}
  \end{minipage}
}

\newcommand{\NaturalElem}[4]{\ElemLabel{#1}{#2}{\huge {#3}}{#4}}

\newcommand{\SyntheticElem}[4]{\ElemLabel{#1}{#2}{\color{gray}{\huge #3}}{#4}}

\begin{tikzpicture}[font=\sffamily]

  % Fill Color Styles
  \tikzstyle{ElementFill} = [fill=yellow!15]
  \tikzstyle{AlkaliMetalFill} = [fill=blue!55]
  \tikzstyle{AlkalineEarthMetalFill} = [fill=blue!40]
  \tikzstyle{MetalFill} = [fill=blue!25]
  \tikzstyle{MetalloidFill} = [fill=orange!40]
  \tikzstyle{NonmetalFill} = [fill=teal!40]
  \tikzstyle{HalogenFill} = [fill=yellow!40]
  \tikzstyle{NobleGasFill} = [fill=green!55]
  \tikzstyle{LanthanideActinideFill} = [fill=red!40]

  % Element Styles
  \tikzstyle{Element} = [ElementFill,
    minimum width=2.5cm, minimum height=2.5cm, node distance=2.75cm]
  \tikzstyle{AlkaliMetal} = [Element, AlkaliMetalFill]
  \tikzstyle{AlkalineEarthMetal} = [Element, AlkalineEarthMetalFill]
  \tikzstyle{Metal} = [Element, MetalFill]
  \tikzstyle{Metalloid} = [Element, MetalloidFill]
  \tikzstyle{Nonmetal} = [Element, NonmetalFill]
  \tikzstyle{Halogen} = [Element, HalogenFill]
  \tikzstyle{NobleGas} = [Element, NobleGasFill]
  \tikzstyle{LanthanideActinide} = [Element, LanthanideActinideFill]
  \tikzstyle{PeriodLabel} = [font={\sffamily\LARGE}, node distance=2.0cm]
  \tikzstyle{GroupLabel} = [font={\sffamily\LARGE}, minimum width=2.75cm, node distance=2.0cm]

  % Group 1 - IA
  \node[Element] (H) {\NaturalElem{1} {1.0079}{H}{Hydrogen}};
  \node[below of=H, AlkaliMetal] (Li) {\NaturalElem{3}{6.941}{Li}{Lithium}};
  \node[below of=Li, AlkaliMetal] (Na) {\NaturalElem{11}{22.990}{Na}{Sodium}};
  \node[below of=Na, AlkaliMetal] (K) {\NaturalElem{19}{39.098}{K}{Potassium}};
  \node[below of=K, AlkaliMetal] (Rb) {\NaturalElem{37}{85.468}{Rb}{Rubidium}};
  \node[below of=Rb, AlkaliMetal] (Cs) {\NaturalElem{55}{132.91}{Cs}{Caesium}};
  \node[below of=Cs, AlkaliMetal] (Fr) {\NaturalElem{87}{223}{Fr}{Francium}};

  % Group 2 - IIA
  \node[right of=Li, AlkalineEarthMetal] (Be) {\NaturalElem{4}{9.0122}{Be}{Beryllium}};
  \node[below of=Be, AlkalineEarthMetal] (Mg) {\NaturalElem{12}{24.305}{Mg}{Magnesium}};
  \node[below of=Mg, AlkalineEarthMetal] (Ca) {\NaturalElem{20}{40.078}{Ca}{Calcium}};
  \node[below of=Ca, AlkalineEarthMetal] (Sr) {\NaturalElem{38}{87.62}{Sr}{Strontium}};
  \node[below of=Sr, AlkalineEarthMetal] (Ba) {\NaturalElem{56}{137.33}{Ba}{Barium}};
  \node[below of=Ba, AlkalineEarthMetal] (Ra) {\NaturalElem{88}{226}{Ra}{Radium}};

  % Group 3 - IIIB
  \node[right of=Ca, Metal] (Sc) {\NaturalElem{21}{44.956}{Sc}{Scandium}};
  \node[below of=Sc, Metal] (Y) {\NaturalElem{39}{88.906}{Y}{Yttrium}};
  \node[below of=Y, LanthanideActinide] (LaLu) {\NaturalElem{57-71}{}{La-Lu}{Lanthanide}};
  \node[below of=LaLu, LanthanideActinide] (AcLr) {\NaturalElem{89-103}{}{Ac-Lr}{Actinide}};

  % Group 4 - IVB
  \node[right of=Sc, Metal] (Ti) {\NaturalElem{22}{47.867}{Ti}{Titanium}};
  \node[below of=Ti, Metal] (Zr) {\NaturalElem{40}{91.224}{Zr}{Zirconium}};
  \node[below of=Zr, Metal] (Hf) {\NaturalElem{72}{178.49}{Hf}{Hafnium}};
  \node[below of=Hf, Metal] (Rf) {\SyntheticElem{104}{261}{Rf}{Rutherfordium}};

  % Group 5 - VB
  \node[right of=Ti, Metal] (V) {\NaturalElem{23}{50.942}{V}{Vanadium}};
  \node[below of=V, Metal] (Nb) {\NaturalElem{41}{92.906}{Nb}{Niobium}};
  \node[below of=Nb, Metal] (Ta) {\NaturalElem{73}{180.95}{Ta}{Tantalum}};
  \node[below of=Ta, Metal] (Db) {\SyntheticElem{105}{262}{Db}{Dubnium}};

  % Group 6 - VIB
  \node[right of=V, Metal] (Cr) {\NaturalElem{24}{51.996}{Cr}{Chromium}};
  \node[below of=Cr, Metal] (Mo) {\NaturalElem{42}{95.94}{Mo}{Molybdenum}};
  \node[below of=Mo, Metal] (W) {\NaturalElem{74}{183.84}{W}{Tungsten}};
  \node[below of=W, Metal] (Sg) {\SyntheticElem{106}{266}{Sg}{Seaborgium}};

  % Group 7 - VIIB
  \node[right of=Cr, Metal] (Mn) {\NaturalElem{25}{54.938}{Mn}{Manganese}};
  \node[below of=Mn, Metal] (Tc) {\NaturalElem{43}{96}{Tc}{Technetium}};
  \node[below of=Tc, Metal] (Re) {\NaturalElem{75}{186.21}{Re}{Rhenium}};
  \node[below of=Re, Metal] (Bh) {\SyntheticElem{107}{264}{Bh}{Bohrium}};

  % Group 8 - VIIIB
  \node[right of=Mn, Metal] (Fe) {\NaturalElem{26}{55.845}{Fe}{Iron}};
  \node[below of=Fe, Metal] (Ru) {\NaturalElem{44}{101.07}{Ru}{Ruthenium}};
  \node[below of=Ru, Metal] (Os) {\NaturalElem{76}{190.23}{Os}{Osmium}};
  \node[below of=Os, Metal] (Hs) {\SyntheticElem{108}{277}{Hs}{Hassium}};

  % Group 9 - VIIIB
  \node[right of=Fe, Metal] (Co) {\NaturalElem{27}{58.933}{Co}{Cobalt}};
  \node[below of=Co, Metal] (Rh) {\NaturalElem{45}{102.91}{Rh}{Rhodium}};
  \node[below of=Rh, Metal] (Ir) {\NaturalElem{77}{192.22}{Ir}{Iridium}};
  \node[below of=Ir, Metal] (Mt) {\SyntheticElem{109}{268}{Mt}{Meitnerium}};

  % Group 10 - VIIIB
  \node[right of=Co, Metal] (Ni) {\NaturalElem{28}{58.693}{Ni}{Nickel}};
  \node[below of=Ni, Metal] (Pd) {\NaturalElem{46}{106.42}{Pd}{Palladium}};
  \node[below of=Pd, Metal] (Pt) {\NaturalElem{78}{195.08}{Pt}{Platinum}};
  \node[below of=Pt, Metal] (Ds) {\SyntheticElem{110}{281}{Ds}{Darmstadtium}};

  % Group 11 - IB
  \node[right of=Ni, Metal] (Cu) {\NaturalElem{29}{63.546}{Cu}{Copper}};
  \node[below of=Cu, Metal] (Ag) {\NaturalElem{47}{107.87}{Ag}{Silver}};
  \node[below of=Ag, Metal] (Au) {\NaturalElem{79}{196.97}{Au}{Gold}};
  \node[below of=Au, Metal] (Rg) {\SyntheticElem{111}{280}{Rg}{Roentgenium}};

  % Group 12 - IIB
  \node[right of=Cu, Metal] (Zn) {\NaturalElem{30}{65.39}{Zn}{Zinc}};
  \node[below of=Zn, Metal] (Cd) {\NaturalElem{48}{112.41}{Cd}{Cadmium}};
  \node[below of=Cd, Metal] (Hg) {\NaturalElem{80}{200.59}{Hg}{Mercury}};
  \node[below of=Hg, Metal] (Uub) {\SyntheticElem{112}{285}{Uub}{Ununbium}};

  % Group 13 - IIIA
  \node[right of=Zn, Metal] (Ga) {\NaturalElem{31}{69.723}{Ga}{Gallium}};
  \node[above of=Ga, Metal] (Al) {\NaturalElem{13}{26.982}{Al}{Aluminium}};
  \node[above of=Al, Metalloid] (B) {\NaturalElem{5}{10.811}{B}{Boron}};
  \node[below of=Ga, Metal] (In) {\NaturalElem{49}{114.82}{In}{Indium}};
  \node[below of=In, Metal] (Tl) {\NaturalElem{81}{204.38}{Tl}{Thallium}};
  \node[below of=Tl, Metal] (Uut) {\SyntheticElem{113}{284}{Uut}{Ununtrium}};

  % Group 14 - IVA
  \node[right of=B, Nonmetal] (C) {\NaturalElem{6}{12.011}{C}{Carbon}};
  \node[below of=C, Metalloid] (Si) {\NaturalElem{14}{28.086}{Si}{Silicon}};
  \node[below of=Si, Metalloid] (Ge) {\NaturalElem{32}{72.64}{Ge}{Germanium}};
  \node[below of=Ge, Metal] (Sn) {\NaturalElem{50}{118.71}{Sn}{Tin}};
  \node[below of=Sn, Metal] (Pb) {\NaturalElem{82}{207.2}{Pb}{Lead}};
  \node[below of=Pb, Metal] (Uuq) {\SyntheticElem{114}{289}{Uuq}{Ununquadium}};

  % Group 15 - VA
  \node[right of=C, Nonmetal] (N) {\NaturalElem{7}{14.007}{N}{Nitrogen}};
  \node[below of=N, Nonmetal] (P) {\NaturalElem{15}{30.974}{P}{Phosphorus}};
  \node[below of=P, Metalloid] (As) {\NaturalElem{33}{74.922}{As}{Arsenic}};
  \node[below of=As, Metalloid] (Sb) {\NaturalElem{51}{121.76}{Sb}{Antimony}};
  \node[below of=Sb, Metal] (Bi) {\NaturalElem{83}{208.98}{Bi}{Bismuth}};
  \node[below of=Bi, Metal] (Uup) {\SyntheticElem{115}{288}{Uup}{Ununpentium}};

  % Group 16 - VIA
  \node[right of=N, Nonmetal] (O) {\NaturalElem{8}{15.999}{O}{Oxygen}};
  \node[below of=O, Nonmetal] (S) {\NaturalElem{16}{32.065}{S}{Sulphur}};
  \node[below of=S, Nonmetal] (Se) {\NaturalElem{34}{78.96}{Se}{Selenium}};
  \node[below of=Se, Metalloid] (Te) {\NaturalElem{52}{127.6}{Te}{Tellurium}};
  \node[below of=Te, Metalloid] (Po) {\NaturalElem{84}{209}{Po}{Polonium}};
  \node[below of=Po, Metal] (Uuh) {\SyntheticElem{116}{293}{Uuh}{Ununhexium}};

  % Group 17 - VIIA
  \node[right of=O, Halogen] (F) {\NaturalElem{9}{18.998}{F}{Fluorine}};
  \node[below of=F, Halogen] (Cl) {\NaturalElem{17}{35.453}{Cl}{Chlorine}};
  \node[below of=Cl, Halogen] (Br) {\NaturalElem{35}{79.904}{Br}{Bromine}};
  \node[below of=Br, Halogen] (I) {\NaturalElem{53}{126.9}{I}{Iodine}};
  \node[below of=I, Halogen] (At) {\NaturalElem{85}{210}{At}{Astatine}};
  \node[below of=At, Element] (Uus) {\SyntheticElem{117}{292}{Uus}{Ununseptium}};

  % Group 18 - VIIIA
  \node[right of=F, NobleGas] (Ne) {\NaturalElem{10}{20.180}{Ne}{Neon}};
  \node[above of=Ne, NobleGas] (He) {\NaturalElem{2}{4.0025}{He}{Helium}};
  \node[below of=Ne, NobleGas] (Ar) {\NaturalElem{18}{39.948}{Ar}{Argon}};
  \node[below of=Ar, NobleGas] (Kr) {\NaturalElem{36}{83.8}{Kr}{Krypton}};
  \node[below of=Kr, NobleGas] (Xe) {\NaturalElem{54}{131.29}{Xe}{Xenon}};
  \node[below of=Xe, NobleGas] (Rn) {\NaturalElem{86}{222}{Rn}{Radon}};
  \node[below of=Rn, Nonmetal] (Uuo) {\SyntheticElem{118}{294}{Uuo}{Ununoctium}};

  % Period
  \node[left of=H, PeriodLabel] (Period1) {1};
  \node[left of=Li, PeriodLabel] (Period2) {2};
  \node[left of=Na, PeriodLabel] (Period3) {3};
  \node[left of=K, PeriodLabel] (Period4) {4};
  \node[left of=Rb, PeriodLabel] (Period5) {5};
  \node[left of=Cs, PeriodLabel] (Period6) {6};
  \node[left of=Fr, PeriodLabel] (Period7) {7};

  % Group
  \node[above of=H, GroupLabel] (Group1) {1 \hfill IA};
  \node[above of=Be, GroupLabel] (Group2) {2 \hfill IIA};
  \node[above of=Sc, GroupLabel] (Group3) {3 \hfill IIIA};
  \node[above of=Ti, GroupLabel] (Group4) {4 \hfill IVB};
  \node[above of=V, GroupLabel] (Group5) {5 \hfill VB};
  \node[above of=Cr, GroupLabel] (Group6) {6 \hfill VIB};
  \node[above of=Mn, GroupLabel] (Group7) {7 \hfill VIIB};
  \node[above of=Fe, GroupLabel] (Group8) {8 \hfill VIIIB};
  \node[above of=Co, GroupLabel] (Group9) {9 \hfill VIIIB};
  \node[above of=Ni, GroupLabel] (Group10) {10 \hfill VIIIB};
  \node[above of=Cu, GroupLabel] (Group11) {11 \hfill IB};
  \node[above of=Zn, GroupLabel] (Group12) {12 \hfill IIB};
  \node[above of=B, GroupLabel] (Group13) {13 \hfill IIIA};
  \node[above of=C, GroupLabel] (Group14) {14 \hfill IVA};
  \node[above of=N, GroupLabel] (Group15) {15 \hfill VA};
  \node[above of=O, GroupLabel] (Group16) {16 \hfill VIA};
  \node[above of=F, GroupLabel] (Group17) {17 \hfill VIIA};
  \node[above of=He, GroupLabel] (Group18) {18 \hfill VIIIA};

  % Lanthanide
  \node[below of=Rf, LanthanideActinide, yshift=-1cm] (La) {\NaturalElem{57}{138.91}{La}{Lanthanum}};
  \node[right of=La, LanthanideActinide] (Ce) {\NaturalElem{58}{140.12}{Ce}{Cerium}};
  \node[right of=Ce, LanthanideActinide] (Pr) {\NaturalElem{59}{140.91}{Pr}{Praseodymium}};
  \node[right of=Pr, LanthanideActinide] (Nd) {\NaturalElem{60}{144.24}{Nd}{Neodymium}};
  \node[right of=Nd, LanthanideActinide] (Pm) {\NaturalElem{61}{145}{Pm}{Promethium}};
  \node[right of=Pm, LanthanideActinide] (Sm) {\NaturalElem{62}{150.36}{Sm}{Samarium}};
  \node[right of=Sm, LanthanideActinide] (Eu) {\NaturalElem{63}{151.96}{Eu}{Europium}};
  \node[right of=Eu, LanthanideActinide] (Gd) {\NaturalElem{64}{157.25}{Gd}{Gadolinium}};
  \node[right of=Gd, LanthanideActinide] (Tb) {\NaturalElem{65}{158.93}{Tb}{Terbium}};
  \node[right of=Tb, LanthanideActinide] (Dy) {\NaturalElem{66}{162.50}{Dy}{Dysprosium}};
  \node[right of=Dy, LanthanideActinide] (Ho) {\NaturalElem{67}{164.93}{Ho}{Holmium}};
  \node[right of=Ho, LanthanideActinide] (Er) {\NaturalElem{68}{167.26}{Er}{Erbium}};
  \node[right of=Er, LanthanideActinide] (Tm) {\NaturalElem{69}{168.93}{Tm}{Thulium}};
  \node[right of=Tm, LanthanideActinide] (Yb) {\NaturalElem{70}{173.04}{Yb}{Ytterbium}};
  \node[right of=Yb, LanthanideActinide] (Lu) {\NaturalElem{71}{174.97}{Lu}{Lutetium}};

  % Actinide
  \node[below of=La, LanthanideActinide, yshift=-1cm] (Ac) {\NaturalElem{89}{227}{Ac}{Actinium}};
  \node[right of=Ac, LanthanideActinide] (Th) {\NaturalElem{90}{232.04}{Th}{Thorium}};
  \node[right of=Th, LanthanideActinide] (Pa) {\NaturalElem{91}{231.04}{Pa}{Protactinium}};
  \node[right of=Pa, LanthanideActinide] (U) {\NaturalElem{92}{238.03}{U}{Uranium}};
  \node[right of=U, LanthanideActinide] (Np) {\SyntheticElem{93}{237}{Np}{Neptunium}};
  \node[right of=Np, LanthanideActinide] (Pu) {\SyntheticElem{94}{244}{Pu}{Plutonium}};
  \node[right of=Pu, LanthanideActinide] (Am) {\SyntheticElem{95}{243}{Am}{Americium}};
  \node[right of=Am, LanthanideActinide] (Cm) {\SyntheticElem{96}{247}{Cm}{Curium}};
  \node[right of=Cm, LanthanideActinide] (Bk) {\SyntheticElem{97}{247}{Bk}{Berkelium}};
  \node[right of=Bk, LanthanideActinide] (Cf) {\SyntheticElem{98}{251}{Cf}{Californium}};
  \node[right of=Cf, LanthanideActinide] (Es) {\SyntheticElem{99}{252}{Es}{Einsteinium}};
  \node[right of=Es, LanthanideActinide] (Fm) {\SyntheticElem{100}{257}{Fm}{Fermium}};
  \node[right of=Fm, LanthanideActinide] (Md) {\SyntheticElem{101}{258}{Md}{Mendelevium}};
  \node[right of=Md, LanthanideActinide] (No) {\SyntheticElem{102}{259}{No}{Nobelium}};
  \node[right of=No, LanthanideActinide] (Lr) {\SyntheticElem{103}{262}{Lr}{Lawrencium}};

  % Draw dotted lines connecting Lanthanide breakout to main table
  \draw[thick,dotted] (LaLu.north west) -- (La.north west)
        (LaLu.south west) -- (La.south west);
  % Draw dotted lines connecting Actinide breakout to main table
  \draw[thick,dotted] (AcLr.north west) -- (Ac.north west)
        (AcLr.south west) -- (Ac.south west);

  % Legend
   \fill[AlkaliMetalFill] ($(La.north -| Fr.west) + (0,1em)$)
     rectangle +(1em, 1em) node[right, yshift=-1.2ex]  (AlkaliMetal) {Alkali Metal};
   \fill[AlkalineEarthMetalFill] ($(AlkaliMetal.west) - (1em,2em)$)
     rectangle +(1em, 1em) node[right, yshift=-1.2ex] (AlkalineEarthMetal) {Alkaline Earth Metal};
   \fill[MetalFill] ($(AlkalineEarthMetal.west) - (1em,2em)$)
     rectangle +(1em, 1em) node[right, yshift=-1.2ex] (Metal) {Metal};
   \fill[MetalloidFill] ($(Metal.west) - (1em,2em)$)
     rectangle +(1em, 1em) node[right, yshift=-1.2ex] (Metalloid) {Metalloid};
   \fill[NonmetalFill] ($(Metalloid.west) - (1em,2em)$)
     rectangle +(1em, 1em) node[right, yshift=-1.2ex] (Non-metal) {Non-metal};
   \fill[HalogenFill] ($(Non-metal.west) - (1em,2em)$)
     rectangle +(1em, 1em) node[right, yshift=-1.2ex] (Halogen) {Halogen};
   \fill[NobleGasFill] ($(Halogen.west) - (1em,2em)$)
     rectangle +(1em, 1em) node[right, yshift=-1.2ex] (NobleGas) {Noble Gas};
   \fill[LanthanideActinideFill] ($(NobleGas.west) - (1em,2em)$)
     rectangle +(1em, 1em) node[right, yshift=-1.2ex] (Lanthanide/Actinide) {Lanthanide/Actinide};

  \node at (Ac -| Fr) [draw, Element, fill=white] (legend) {\NaturalElem{Z}{mass}{\LARGE Symbol}{Name}};
  \node[align=left] at (Ac -| Ra) {black: natural\\\color{gray}gray: man-made};

  % Diagram Title
  \node at (H.west -| Fe.north) [scale=2, font={\sffamily\Huge\bfseries}]
    {Periodic Table of Elements};

\end{tikzpicture}

\end{document}

Compile the LaTeX File:
- Open a terminal and navigate to the Assignment10 folder.
- Run the following command to compile the file:

pdflatex periodicTable.tex

This will generate the following output files:

periodicTable.pdf

periodicTable.log

periodicTable.aux

Verify the Output:
- Open periodicTable.pdf and ensure that the generated PDF matches the expected periodic table diagram as figure in the below.

Clean Up the Folder:
- Delete all files except for periodicTable.pdf.
- Your final folder structure should look like this:

Assignment10/
── periodicTable.pdf  # The final PDF output to be submitted.

Submit the Assignment:
- Submit the Assignment10 folder containing only the periodicTable.pdf file.

Final Deliverable

Submit the Assignment10 folder with only the periodicTable.pdf file inside.

Submit your Assignment 10

Before running the submitAssignment.sh file, make sure you are in the "Assignment 10" folder. Running this script in any other folder or subfolder may result in missing files being uploaded. When executed in the correct folder, all files in the "Assignment 10" directory will be included in the submission.

If everything is ready, type the following command in your terminal to submit your assignment:

submitAssignment.sh
